Technical Features：

Conjugate Cam Drive: Utilizes a conjugate cam drive system. By designing different dwell angles, it meets the shedding time requirements for looms of various widths.
Cam Coaxial Structure: The jacquard machine adopts a cam coaxial structure, ensuring completely symmetrical shedding. This achieves perfectly balanced motion, resulting in more stable, reliable, and energy-efficient operation.
High-Strength Aluminum Alloy Lifting Knife: Specially designed lifting knives made of high-strength aluminum alloy offer higher rigidity and lighter weight, making them suitable for high-speed operation.
Self-Developed Improved Solenoid Valve Assembly: Features a self-developed, improved solenoid valve assembly with enhanced stability and extended lifespan.

Advantages：

Low noise
Long service life
Easy maintenance
High performance
Simple and convenient installation
Perfect balance
Suitable for high-speed operation

Specifications：

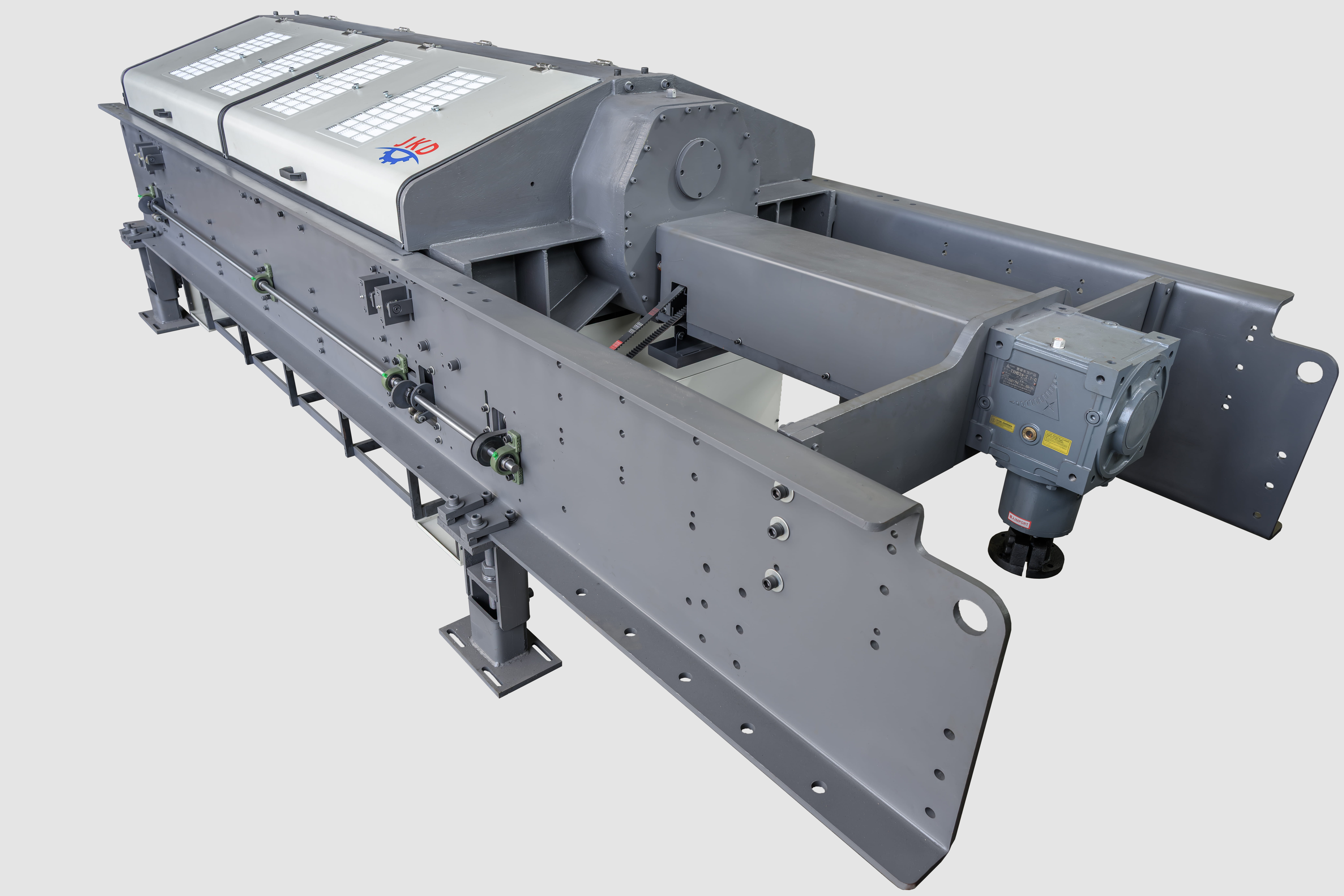

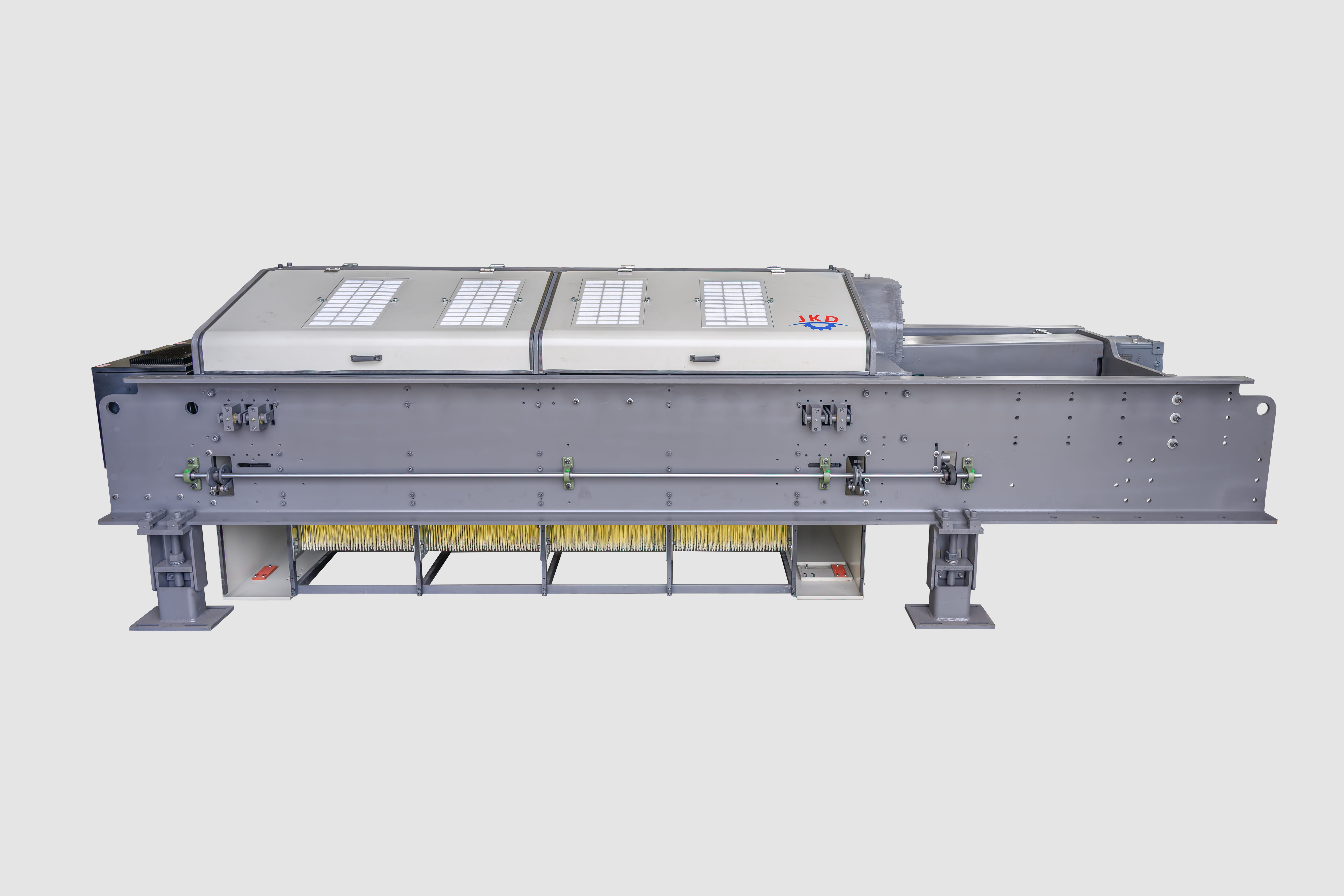

Model CSL32
Compatible Looms Rapier, air-jet, projectile, and water-jet looms — including brands such as DORNIER, PICANOL, SOMET, SULZER, VAMATEX, ITEMA, as well as Chinese and second-hand looms.
Compatible Fabric Types Curtain fabric, woolen fabric, labels, neckties, garments, brocade, decorative fabrics, sofa fabrics, chenille and other jacquard fabrics
Number of Hooks 6144, 6216, 6912, 7168, 8192, 8448 , 10240, 12288, 14336, 22784, 25344 hooks
Drive Mode & Shedding Type Coaxial system, driven by conjugate cam, full-motion shedding
Shedding Height 55–120 mm (adjustable)
Pattern Input Method USB or mobile network data transmission

Dimensions：

Number of Hooks Length （mm） Width（mm）  Height（mm）
6912 hooks 4300 1600 1250
10240 hooks 4400 1600 1250
